How Can an All-In-One Solution Improve Beverage Production?

An all-in-one beverage production system can improve output by connecting water treatment, mixing, thermal processing, filling, packaging, cleaning, and production control under one engineering plan. A line rated at 24,000 bottles per hour cannot sustain that rate if upstream preparation supplies only 18,000 bottles per hour. Integrated sizing reduces these mismatches while centralized controls keep temperature, pressure, Brix, fill level, and cleaning records within defined ranges. FDA juice rules also require processes capable of at least a 5-log, or 100,000-fold, pathogen reduction for covered juice products. Integration therefore affects throughput, hygiene, labor, utilities, traceability, and expansion planning at the same time.

A beverage line works as a chain rather than a collection of machines. Water treatment determines the condition of the largest ingredient in many drinks; blending establishes concentration and flavor; pasteurization, carbonation, or another treatment sets product conditions before filling; filling then depends on stable pressure, temperature, and supply. A 30,000-bottle-per-hour filler connected to a labeler that can reliably handle 24,000 bottles per hour still leaves the practical line capacity near 24,000.

That capacity relationship is why an all-in-one design usually starts with a mass-flow calculation rather than a machine catalog. Engineers compare container volume, hourly target, batch size, processing time, tank turnover, cleaning time, buffer capacity, and expected changeover frequency before choosing equipment.

Production area	Useful engineering figure	Why it matters
Filling	24,000 bottles/hour example	Sets downstream conveying and packing demand
Juice treatment	5-log reduction	Equals at least a 100,000-fold reduction in the pertinent pathogen
OEE reference	85% often cited for discrete manufacturing	Built from 90% availability, 95% performance, and 99% quality
Brewing water	About 7:1 historical average	Brewers Association guidance notes some operations below 3:1

The OEE figure deserves context. An 85% OEE level is widely referenced in discrete manufacturing, but it is not a universal beverage-industry requirement. Even 90% availability, 95% performance, and 99% quality multiply to about 85%, showing why a few small losses across several stages can noticeably reduce productive time.

Those losses often appear at machine interfaces. A filler may stop because caps are unavailable, a conveyor has accumulated containers, a pasteurizer is waiting for product, or a case packer has faulted. When controls share line status, upstream machines can slow or pause in a planned sequence rather than continue producing containers that will soon be rejected.

A line with ten capable machines can still perform poorly when each machine reacts only to its own sensors.

Central control also improves recipe handling. A beverage recipe can link ingredient quantities, mixing time, Brix range, carbonation setting, product temperature, filler pressure, and selected packaging format. If a plant runs 12 SKUs, stored recipes reduce the number of settings operators must enter manually during repeated changes.

Measurement becomes more useful when the instruments are installed around the complete process. Flow meters can compare water and syrup addition; conductivity sensors can support CIP phase control; pressure transmitters can show conditions before the filler; temperature sensors can record heat-treatment conditions; inspection systems can count fill-level, cap, label, and coding rejects.

The result is a production record that can connect a finished batch with measurable process conditions. For regulated juice operations in the United States, FDA rules under 21 CFR Part 120 require covered processors to perform hazard analysis and, where applicable, maintain control measures capable of a 5-log reduction in the pertinent microorganism. FDA describes 5-log as a reduction by a factor of 100,000.

Food safety requirements also show why processing and filling should not be planned separately. FDA guidance states that, with specified exceptions, the 5-log treatment for juice must occur in the same facility in which final packaging takes place. A technically suitable treatment step therefore still has to fit the complete production and packaging arrangement.

Cleaning follows the same logic. Tanks, pipework, valves, heat exchangers, and fillers have different product-contact geometries, yet a Clean-in-Place system has to circulate cleaning fluid through the entire route at suitable temperature, concentration, flow, and time.

A typical automated CIP sequence may include:

• product recovery or displacement before cleaning;

• initial water rinse to remove loose residue;

• alkaline circulation for organic soil;

• intermediate rinsing;

• acid cleaning where mineral deposits require it;

• sanitizing or hot-water treatment where specified;

• final rinse and conductivity confirmation before production resumes.

A poorly sized return line or pump can weaken cleaning performance even when the chemical program is correct. Integrated engineering therefore considers supply flow, return flow, tank volume, heating capacity, pressure loss, valve routing, and the number of circuits that may need cleaning during one production day.

Cleaning design is also tied directly to water use. Brewers Association guidance has reported an average brewery water-use ratio of roughly 7 barrels of water for 1 barrel of beer, while some breweries have operated below 3:1. The same publication treats water used in cleaning, packaging, utilities, and production as part of the total site figure rather than focusing only on recipe water.

Historical brewery wastewater data makes the relationship even clearer. Brewers Association guidance reported an average water-use ratio of 6.94 barrels per barrel of beer across the referenced data, an average wastewater-to-water ratio of 0.78, and average wastewater biochemical oxygen demand of 10,563 mg/L. The figures vary by plant, but they show why rinsing and product loss can affect both incoming-water cost and wastewater treatment.

A plant can respond by separating product recovery, first rinse, final rinse, and sanitation instead of treating every liquid stream the same way. Water suitable for one non-product-contact use may be unsuitable for another, so reuse needs hygienic assessment rather than a simple storage tank.

Energy planning benefits from the same plant-wide view. The U.S. Department of Energy reports that about two-thirds of end-use energy in food and beverage manufacturing plants is consumed by manufacturing processes such as process heating. Heat recovery, efficient steam generation, water heating, process control, and suitable equipment sizing therefore deserve attention before utility systems are fixed.

The production recipe also changes utility demand. Hot-fill juice may require heating followed by cooling, carbonated drinks need refrigeration and CO₂ handling, and brewing uses heat during wort production followed by substantial cooling during fermentation and conditioning. Selecting pumps, chillers, boilers, compressors, and heat exchangers independently can leave excess capacity in one area and inadequate capacity in another.

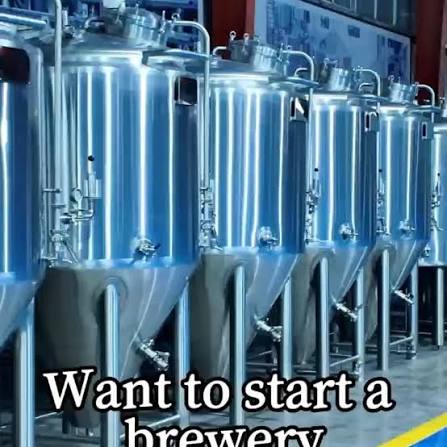

Breweries make a useful example because process and utility equipment are tightly connected. Brewing Equipment may include brewhouse vessels, fermentation tanks, bright beer tanks, heat exchangers, pumps, CIP components, and supporting controls. A 20-barrel brewhouse paired with insufficient fermentation capacity will not gain much from faster wort production because tank residence time is measured in days rather than hours.

Tank scheduling therefore matters as much as nominal machine speed. If one batch occupies a fermentation vessel for 14 days, increasing brewhouse output without adding suitable cellar capacity simply moves the capacity restriction downstream.

Packaging presents a different set of constraints. Container size, neck finish, closure type, label format, pack pattern, conveyor geometry, and inspection requirements all influence achievable speed. A line running 500 mL bottles may need different guide settings, change parts, label parameters, and case arrangements when moved to 330 mL containers.

For plants with several formats, changeover time belongs in the capacity calculation. A theoretical rate of 30,000 bottles per hour produces 240,000 bottles during an 8-hour period only if the line runs continuously. Two 30-minute changeovers remove 12.5% of that scheduled time before minor stops, cleaning, material replenishment, or quality checks are counted.

That is where stored format settings and mechanical design become practical rather than cosmetic. Servo-controlled positioning, recipe-based parameters, coded change parts, tool-free adjustments where suitable, and clear setup verification can reduce the number of manual settings that need checking after every SKU change.

Inspection equipment then provides another layer of control. Depending on the package, cameras and sensors can check closure presence, fill height, label position, code readability, container orientation, or obvious package defects. Reject data should be stored by time and production run so repeated faults can be compared with filler, capper, labeler, or conveyor conditions.

A reject rate moving from 0.5% to 1.5% may look small on a screen, but on 100,000 containers it changes rejects from 500 to 1,500 units. Linking inspection counts with machine alarms helps maintenance staff locate the production stage associated with the increase instead of relying on end-of-shift totals.

Plant layout affects the same performance figures. Straight product routes, adequate accumulation, hygienic zoning, maintenance access, drainage, safe chemical handling, and sufficient space around tanks can reduce later modifications. Expansion space also matters when annual demand may move from 10 million to 15 million packages.

An integrated project can reserve pipe connections, electrical capacity, network addresses, floor space, utility headers, and control-panel capacity for a later filler, tank, or packaging module. The plant does not need to purchase every future machine in year one; it needs interfaces that do not require major reconstruction when capacity changes.

Procurement should therefore compare complete operating requirements rather than only equipment purchase price. A proposal can be reviewed against rated output, confirmed product conditions, container formats, cleaning method, water demand, electrical load, compressed-air demand, thermal load, staffing, spare parts, planned maintenance, controls, documentation, installation scope, and acceptance testing.

Factory and site acceptance tests give those specifications measurable limits. Instead of accepting “high efficiency,” a contract can state a defined container, beverage, running speed, test duration, acceptable reject rate, and product conditions. A 24,000-bottle-per-hour acceptance target is easier to verify than a general promise of high output.

Supplier responsibility also becomes easier to manage when process, filling, conveying, and control interfaces belong to one engineering scope. If product pressure arriving at the filler is unstable, engineers can inspect the upstream tank, pump, valve timing, control loop, and filler together rather than treating each unit as an unrelated package.

Documentation should follow the same structure. Piping and instrumentation diagrams, electrical drawings, software backups, equipment manuals, spare-parts lists, cleaning procedures, lubrication schedules, and training records need to match the installed line. A 2026 plant with extensive automation gains little from centralized controls if maintenance teams cannot identify a valve, sensor, interlock, or software version during a fault.

Production data can then support maintenance planning rather than simply filling dashboards. Repeated 3-minute stops, rising pump current, longer valve response, abnormal temperature recovery, or increasing reject counts can be reviewed by machine and SKU. Plants gain more from a small set of consistent measurements than from hundreds of signals that nobody uses.

The strongest all-in-one projects therefore begin with measurable inputs: product specification, annual volume, hourly output, batch size, number of SKUs, package formats, sanitation requirements, utility limits, available floor area, staffing model, and planned expansion. Equipment selection follows those figures, while process design, filling, packaging, CIP, utilities, controls, and documentation are checked against the same production assumptions.
